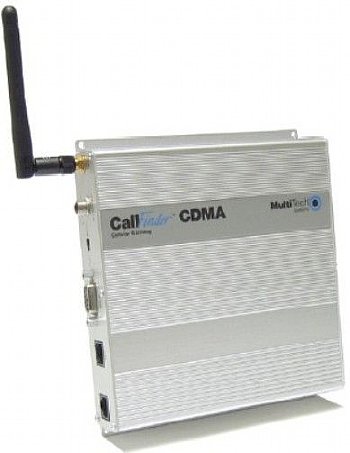

CF100FX2-C-N2

SKU: CF100FX2-C-N2
CallFinder CDMA Cellular Gateway, 1-Port (Sprint) CF100FX2-C-N2 Gateways
List Price: $599.00
Price: $429.60
You Save: $169.40 (28%)
no
CF100FX2-C-N2
CF100FX2-C-N2
Product Details

MultiTech System CF100FX2-C-N2 CallFinder CDMA 1-Port CDMA Cellular Gateway, CDMA Gateway for Sprint Networks, Connects to PBX, Key Telephone System, analog phones or analog phone lines, Dual-band 800/1900 MHz CDMA, Qualcomm MSM6050 chipset, FXS and FXO interfaces, U.S. Caller ID reporting, Line reversal features for disconnect and billing, Voice features include EVRC, 13kQCELP and AMPS voice, SMA antenna connector, Desktop or panel mounting, Small footprint


General Information

Manufacturer

MultiTech System

Manufacturer Part Number

CF100FX2-C-N2

Product Name

CallFinder® CDMA 1-Port CDMA Cellular Gateway, CDMA Gateway for Sprint Networks

Marketing Information

The CallFinder® CDMA cellular gateway enables small to medium-sized businesses to take advantage of lower cost wireless networks to provide a substantial savings in their overall telephone bill. It connects to a PBX trunk line, PBX extension line, or a single PSTN line and routes incoming and outgoing calls through a CDMA wireless network. Equipped with both FXS and FXO interfaces, the gateway offers a wide range of potential applications.

Features

  • Connects to PBX, Key Telephone System, analog phones or analog phone lines
  • Dual-band 800/1900 MHz CDMA
  • Qualcomm® MSM6050 chipset
  • FXS and FXO interfaces
  • U.S. Caller ID reporting
  • Line reversal features for disconnect and billing
  • Voice features include EVRC, 13kQCELP and AMPS voice
  • SMA antenna connector
  • Desktop or panel mounting
  • Numerous LEDs provide operational status
  • AT command compatible
  • Small footprint
  • CDG 1 and 2 network certified

Specifications

Voice Features EVRC, 13kQCELP, & AMPS voice
Antenna Connector 50 ohm SMA (Female connector)
Interface Connector (1) RS-232 DB-9
Voice Connectors (2) RJ-11 (1 - FXS, 1 - FXO)
FXS Interface: Analog phone or PBX/KTS CO port; loop start
FXO Interface: PBX/KTS station port or CO line; loop start
Power Connector 2.5mm miniature screw
Power Requirements 7V to 12VDC
Physical Description 6" L x 6.4" W x 1.2" H; 1.35 lbs. (15.2 cm x 16.3 cm x 3.0 cm: 612g)
Operating Environment 0° to +50° C
Certifications EMC: FCC Part 2, 15 Class A, 22, 24; EN 55022; EN 55024
Safety: cUL, UL 60950; EN 60950
Network: CDG 1 & 2
