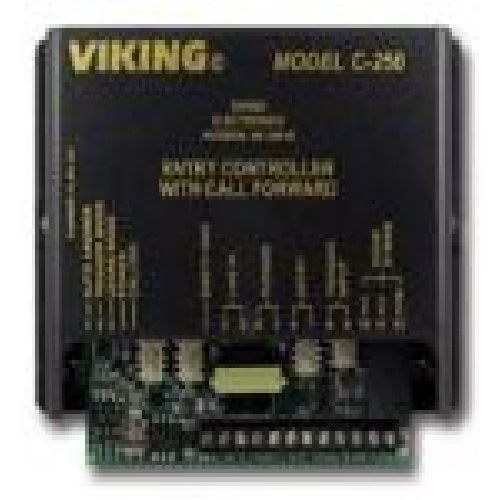

Viking C-250 Entry Door Controller and Router
Applications:
- Add an entry phone to your standard home or office phones to provide door communication
- Provide commercial or residential security via two-way handsfree communication at the door or gate
- Connects in series with a single phone line or to a phone system’s unused line input (loop start trunk input)
Features:
- Entry Phone Controller And Call Router
- Allows single line telephones or a telephone system to share a phone line with a door entry phone
- House phones ring with C.O. line cadence or distinctive ring when the entry phone is calling
- Built in five number dialer
- Detects busy or ring no answer and goes onto the next number
- Built in door strike relay with 1 or 2 digit commands
- Detects touch tones as fast as 50 milliseconds
- Postal lock input
- Produces "Call Waiting” tones if the entry phone is activated when the house phones are already on a call
- Compatible with these Viking entry phones:
- Works with any E Series or K Series of Viking Phones
- Or use with any analog phone
Specifications:
- Power: 120VAC / 13.8VAC 1.25A, UL listed adapter provided
- Dimensions: 133mm x 104mm x 44mm (5.25" x 4.1" x 1.75")
- Shipping weight: 0.9kg (2 lbs.)
- Environmental: 0°C to 32°C (32°F to 90°F) with 5% to 95% non-condensing humidity
- Ring Output: 5 REN, capable of ringing (10) 0.5 REN phones
- Talk Battery: 32V DC
- Relay Contact Rating: 5A @ 30VDC / 250VAC Maximum
- Connections: (12) cage clamp screw terminals
