910-153-113

SKU: 910-153-113

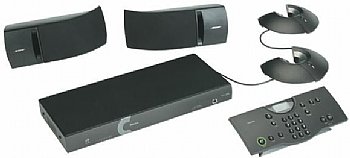

RAV 600, Premium conferencing system with a wired controller, two microphone pods and two BOSE ceiling speakers. 910-153-113 RAV, UPC: 671010531138
List Price: $2,322.00
Price: $1,501.76
You Save: $820.24 (35%)
Out of stock; discontinued
910-153-113
910-153-113
Product Details
RAV (pronounced rave) is a complete, out-of-the-box audio conferencing system that includes an audio mixer, loudspeakers, microphones and a wireless or wired control device. It can be used as a higher-quality alternative to premium and standard conference phones for stand-alone audio conferencing. It also easily connects to common rich-media devices, such as video or Webconferencing systems, for enhanced audio performance.

RAV offers many powerful audio processing technologies from ClearOne’s XAP product line without the need for complex and costly professional installation and programming. It features Distributed Echo Cancellation, noise cancellation, microphone gating and a drag-and-drop graphical user interface for easy system setup, control and management.

RAV 600 includes an audio mixer with an integrated telephone interface and amplifier, a wireless or wired control unit, RAV-Ware software, and two RAV microphone pods comprised of three microphones each.

Features
Superior Audio Performance
  • Sound quality exceeds any conference phone
  • ClearEffect provides natural, full-sounding audio without requiring wideband on both ends
  • Distributed Echo Cancellation effectively eliminates echo
  • Noise cancellation removes background noises from fans or HVAC systems
  • Full-duplex sound enables participants to speak and listen at the same time without cutting in and out
  • Automatic level controls keep participants’ audio balanced and consistent
  • First-mic priority eliminates hollow “tunnel” sound by activating only the microphone closest to the person speaking
  • Three microphones per pod provide 360° audio pickup Rich Media Ready
  • Interfaces with any video or web conferencing system, providing a superior alternative to the existing audio setup
Ease of Use and Installation
  • Dial pad resembles a standard phone
  • Built-in web server enables remote access
  • RAV-Ware software provides simple user interface for system configuration
  • Plug and play setup – conference in minutes

Flexibility

  • Place mixer on tabletop, credenza, or in rack
  • Multiple speaker options: wall-mount, ceiling-mount, or custom
  • Position microphone pods, speakers, and controller in optimal locations
  • Wireless or wired controller option
Remote System Management
  • Configure, monitor, and control single or multiple RAV systems via LAN or WAN
Investment Protection
  • Remote firmware upgrade capabilities for future product enhancements
  • For evolving conference room needs - use audio now, add video or web later

Specifications

Audio Mixer AEC tail time: 128 ms
Adaptive noise cancellation: (6 – 18 dB)
Gating: Adaptive ambient, 1st mic priority, look-ahead gating, NOM attenuation
Audio bandwidth: 16 kHz with videoconferencing or other full-band networks
Microphone Pod Coverage: 360 degrees
Connection: RJ-45 with Cat. 5, Link In/Out Ports
Maximum Distance from Base Mixer: 50' (RAV 900), 75' (RAV 600)
Frequency Response:60 Hz – 14 kHz (+/-1 dB) THD+N: <0.08% (–45 dBu input @ 1 kHz)
Sensitivity: -45 dBu
Input Level: -6 dBu for 1 kHz 94 dBSPL microphone input
Dynamic Range: > 65 dB
Line Input Connection: Unbalanced RCA
Gain: -10 dBu nominal, adjustable from -14 dB to +18 dB
Nominal Level: -10 dBu
Maximum Level: +9 dBu
Impedance: > 10 kOhm
Loudspeaker Connection: Left and right push terminals
Power: 10 Watts into 8 Ohm load
Impedance: 8 Ohm
Frequency Response:60 Hz – 15 kHz (+/-1 dB)
Dynamic Range: > 80 dB
THD+N:< 0.5% (+5 dBu line input @ 1 kHz)
Output Level:90 dBSPL output @ 1 meter
Line Output Connection: Unbalanced RCA
Nominal Level: -10 dBu, adjustable from -14 dB to +18 dB
Maximum Level: +9 dBu
Frequency Response:40 Hz – 15 kHz (+/-1 dB)
Dynamic Range: > 80 dB
THD+N:< 0.02% (+6 dBu input @ 1 kHz)
Playback/Record Input Connection: Unbalanced RCA
Gain: -10 dBu nominal, adjustable from -14 dB to +18 dB
Nominal Level: -10 dBu
Maximum Level: +9 dBu
Impedance: > 10 kOhm
Playback/Record Output Connection: Unbalanced RCA
Nominal Level: -10 dBu, adjustable from -14 dB to +18 dB
Maximum Level: +9 dBu
Frequency Response:40 Hz – 15 kHz (+/-1 dB)
Dynamic Range: > 80 dB
THD+N: < 0.02% (+6 dBu input @1 kHz)
Telephone Interface Connection: RJ-11 (Set and Line jacks)
Tail Time: 30 ms
Frequency Response: 250 Hz to 3.3 kHz (+/-1 dB)
THD+N:< 0.2% (+7 dBu line input @1 kHz)
Dynamic Range: > 60 dB
RS-232 Control Port DB9 female 9,600/19,200/38,400/57,600 (default)/115,200
Baud rate: 8 bits, 1 stop, no parity
Hardware flow control on (default)/off
Communication I/O 10/100 Ethernet Control Port:
RJ-45 with LED indicators for link,
duplex and activity status.
USB 1.1 Configuration Port Slave port
Power Supply Primary Voltage: 100 to 240 VAC
Auto-Sensing, 50-60 Hz
VISCA Camera Port DIN, 9600 baud, no Flow Control
Dimensions (W x D x H) Mixer: 17" x 7.5" x 2"
(43.2 cm x 19.1 cm x 5.1 cm)
RF Controller: 10.5" x 4.5" x 2.75"
(26.7 cm x 11.4 cm x 6.9 cm)
Mic Pod Diameter: 7" (17.8 cm),
Height: 1.5" (3.8 cm)
Weight Mixer: 4.5 lb (2 kg)
RF Controller: 2.0 lb (.9 kg)
Mic Pod: 1.1 lb (.5 kg)
Environmental Operating Temp: 32-122º F (0-50º C)
