PDUMV40

SKU: PDUMV40
Tripp Lite Single-Phase Metered PDU, 20A 120V with two 20A circuits, 0U Vertical Rackmount, set of two NEMA L5-20P inputs and 5-20P adapters
List Price: $489.00
Price: $263.84
You Save: $225.16 (46%)
PDUMV40
PDUMV40
PDUMV40
PDUMV40
PDUMV40
PDUMV40
PDUMV40
PDUMV40
PDUMV40
PDUMV40
PDUMV40
PDUMV40
PDUMV40
PDUMV40
PDUMV40
PDUMV40
PDUMV40
PDUMV40

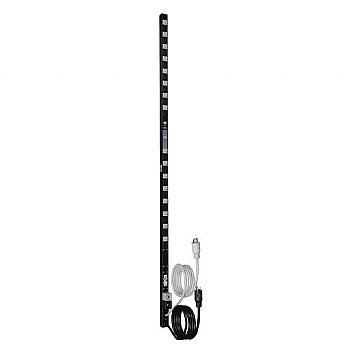

(Click to see larger image and other views)
Product Details
The PDUMV40 provides an efficient and manageable power distribution solution for multiple servers with dual redundant power supplies, or any other application that requires numerous outlets, high capacity, and a compact form factor. Dual input current monitoring display shows AC power consumption for each independent circuit. Switchless design eliminates accidental shutoff of connected equipment. Unfiltered electrical pass-through without a power switch makes the PDUMV40 ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets, and more. Each of two independent circuits' supports 16 outlets and equipment loads up to 2,400 watts32 outlets and 4,800 watts total capacity without consuming additional rack space.

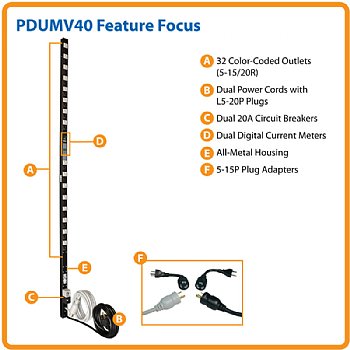

Features:
  • All-in-one Zero U form factor enables efficient, single-enclosure installations
  • Dual independent circuit design delivers high capacity across 32 outlets in minimal space

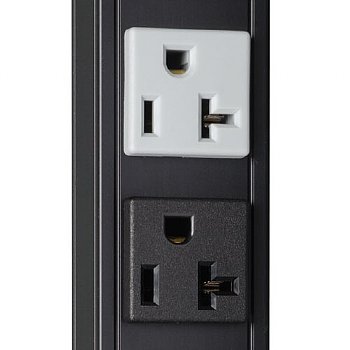

  • Input plugs, input power cords, breakers and outlets are color-coded to match each independent 20A circuit, allowing simplified cable management for multi-server configurations

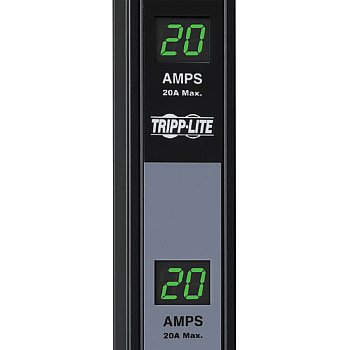

  • Dual digital current monitoring displays (1 for each circuit)

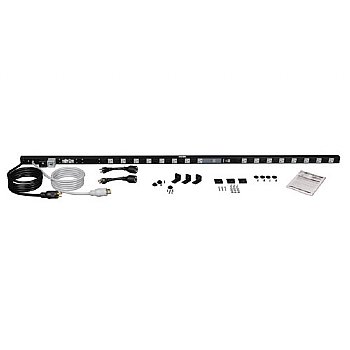

  • 10 ft. dual input power cords increase mounting flexibility; mounting hardware included
  • Combines the advantages of two separate high-current PDU's without the extra expense, increased space requirements and added management complexity
  • Includes two adapters that convert NEMA L5-20P input plugs to NEMA 5-20P. Twist-lock interface ensures secure connection
  • Switchless design prevents accidental shutdown of connected equipment

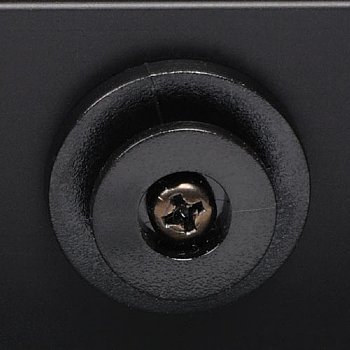

  • Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications
Typical Applications:
  • Ideal means of powering servers and networking equipment with dual redundant power supplies and other applications requiring numerous outlets, high capacity and a compact form factor. Ideal distribution of alternate and sinewave UPS and generator power or commercially derived AC power to connected equipment.
