GN680T

SKU: GN680T
Brand: Zyxel

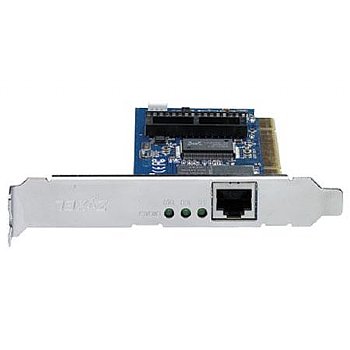

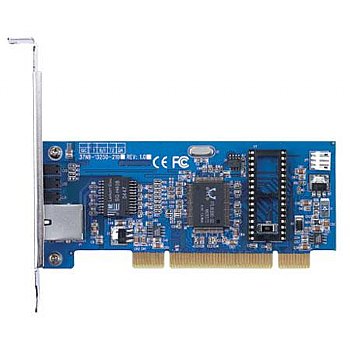

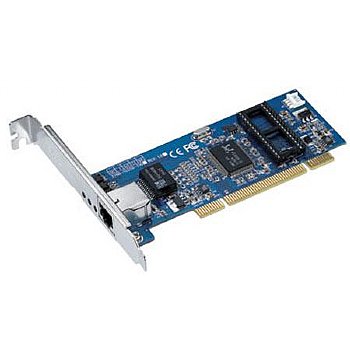

ZyXEL GN680T Gigabit PCI Adapter with Wake-On-LAN, 32 Bit
List Price: $44.99
Price: $22.19
You Save: $22.80 (51%)
GN680T
GN680T
GN680T
GN680T
GN680T
GN680T
GN680T
GN680T
(Click to see larger image and other views)
Product Details
ZyXEL's GN680-T Gigabit PCI adapter can speed up access time and move large files across a network instantly. GN680-T not only builds standard-based 10/100/1000 flexibility and scalability into a network, but also makes network migration to Gigabit speeds efficient and cost-effective. IEEE-based VLAN support and priority tagging enables broadcast storm blocking and traffic classification, making networks more efficient and secure.

Features:

Auto-negotiating 10/100/1000Mbps
Automatic MDI/MDIC crossover
Plug-and-Play
Support 802.1Q VLAN
Support 802.1p priority queue
Support ACPI to save power consumption
Support WoL(Wake-On-LAN) for remote wake-up

Specifications:
Standards compliance IEEE802.3 10BASE-T Ethernet
IEEE802.3u 100BASE-TX Fast Ethernet
1000Base-T gigabit
ANSI/IEEE802.3 Auto-negotiation
IEEE802.3x Flow Control
802.3ab
802.1p Priority Tagging
802.1q VLANs
Data transfer rates Ethernet 10M/20Mbps(half/full duplex)
Fast Ethernet 100M/200M(half/full duplex)
Gigabit 1000M/2000M (half/full)
Interface Single port: 10BASE-T, 100BASE-TX
1000BASE-T Ethernet port
PCI Bus type
PCI 2.2
32 bit at 33MHz or 66MHz
Media Interface Exchange Auto MDI/MDI-X
Status LED LINK/ACT
10/100/1000Mbps
Cabling 10BASE-T: 2-pair UTP Cat.3, 4, 5 (100 m), EIA/TIA-586 100-ohm STP (100 m)
100BASE-TX: UTP Cat.5 (100 m max.), EIA/TIA-586 100-ohm STP (100 m max.)
1000BASE-T: UTP Cat.5 (100 m max.), EIA/TIA-586 100-ohm STP (100 m max.)
QoS 802.1Q VLAN tagging
802.1p, 8-priority queues (VLANs)
Jumbo frame Up to 7.5KB
Power saving ACPI Ver 2.0WoL
Management DMI 2.0WfM Baseline V2.0
Operating temperature 0deg. C - 45deg. C (32deg.F to 113deg.F)
Humidity 10% to 90% (Non-condensing)
System requirement Gigabit switch(e.g.GS-108A)
Network Cables
Dimensions (L x W) 5.2" x 2" / 133 x 49 mm
Weight 2oz / 64g
