JGS524E-100NAS

SKU: JGS524E-100NAS
Brand: Netgear

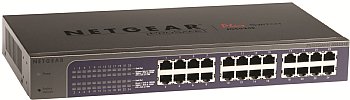

Netgear PROSAFE® PLUS SWITCH 24-PORT GIGABIT ETHERNET
List Price: $368.00
Price: $244.58
You Save: $123.42 (34%)
JGS524E-100NAS
JGS524E-100NAS
Product Details
More Capabilities beyond Plug-and-play Connectivity

Today's growing businesses demand and rely more on their network to carry out mission-critical business activities. Companies are putting more network traffic and applications on their Ethernet infrastructure. For example, the increasing deployments of VoIP phones and IP cameras require more than simple plug-and-play connectivity. It needs the network intelligence to separate the voice and video traffic from data, and prioritize them accordingly. Additionally, Internet-based applications such as Hotmail and Google Calendaring have made keeping the network up a business-critical need. However, companies do not necessarily have more money or advanced training to deal with complex managed switches. NETGEAR's new ProSafe Plus Switches meet this growing need by providing fundamental network features that will help optimize the performance of business networks. ProSafe Plus Switches also offer traffic monitoring for users to observe traffic behavior. If there are connectivity issues, these switches can identify and even locate connection problems via cable diagnostic test. To optimize traffic through the switches, ProSafe Plus Switches offer both port and tag-based prioritization to keep latency-sensitive traffic moving ahead of less critical packets. Also, ProSafe Plus Switches offer port and 802.1Q-based VLAN as a means of improving security and network performance. ProSafe Plus Switches are an upgrade from the plug-and-play Unmanaged Switch, delivering great value for empowering your network, delivering great value to the end user.

Features
  • ProSafe Plus Switch delivers network monitoring, traffic prioritization and VLAN
  • 24 ports deliver up to 2000 Mbps of dedicated, non-blocking bandwidth per port
  • Simple, yet useful network set-up on top of plug-and-play connectivity
  • Gigabit speed with QoS, VLAN and network monitoring
  • VLAN support for traffic segmentation
  • Quality of Service (QoS) for traffic prioritization
  • Auto "denial-of-service” (DoS) prevention
  • Troubleshoot connection issues via cable test
  • Loop prevention and broadcast storm controls
  • IGMP snooping v1, v2 and v3 support for multicast optimization
  • Rate limiting for better bandwidth allocation
  • Port mirroring for network monitoring
  • Jumbo frame support

NETGEAR Green

  • Up to 60% lower power consumption than the non-Green version
  • Auto power-down and cable-length detection for energy savings
  • Packaging manufactured with at least 80% recycled materials

System Requirements

  • Ethernet Category 5 cable
  • Network card for each PC
  • Microsoft® Windows® 7, XP or Vista®, for running Configuration Utility

Technical Specifications


Standards Compliance
  • IEEE® 802.3z 1000BASE-T Gigabit Ethernet
  • IEEE 802.3i 10BASE-T Ethernet
  • IEEE 802.3u 100BASE-TX Fast Ethernet
  • Compatible with all major network software

Network Ports

  • Twenty-four (24) 10/100/1000 Mbps Ethernet RJ-45 ports

AC Power

  • 100-240V, 50-60Hz, 0.9A max, localized to country of sale

Physical Specifications

  • Dimensions (h x w x d): 43 x 330 x 173 mm (1.7 x 13 x 6.8 in)
  • Weight: 1.43 kg (3.15 lb)

Environmental Specifications

  • Operating temperature: 32° to 104° F (0° to 40 °C)
  • Operating humidity: 90% maximum relative humidity, non-condensing

Electromagnetic Compliance

  • CE mark (commercial), FCC Part 15 Class A, EN 55022 (CISPR 22) Class A, VCCI Class A, C-Tick

Safety Agency Approvals

  • UL/cUL 60950, CB, CCC

Package Contents

  • ProSafe® Plus Switch 24-port Gigabit Ethernet Switch (JGS524E)
  • Rack-mount kit
  • Power cord
  • Quick Install Guide
  • Installation CD with Configuration Utility software

Warranty

  • NETGEAR Lifetime Warranty
