IES1000

SKU: IES1000
Brand: Zyxel

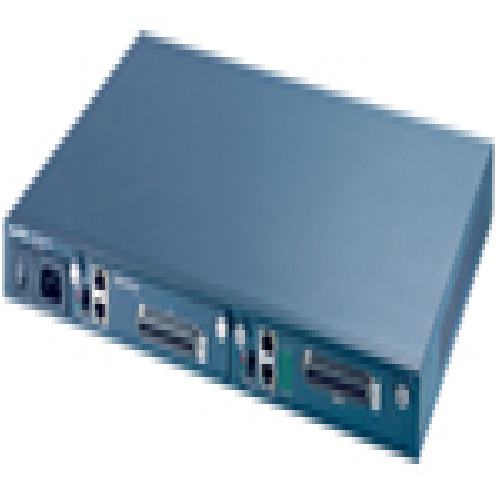

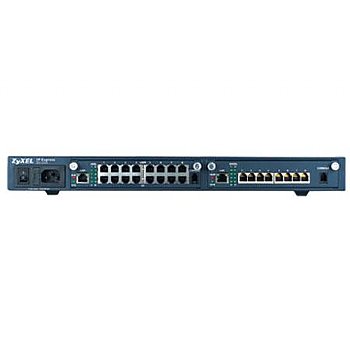

ZyXEL IES-1000M 1U IP Digital Subscriber Line Access Multiplexer, DSLAM, with AC Power
List Price: $244.99
Price: $209.07
You Save: $35.92 (15%)
IES1000
IES1000
IES1000
IES1000
IES1000
IES1000
(Click to see larger image and other views)
Product Details
ZyXEL IES-1000 is a pizza box IP-based multi-service access node (MSAN). It has two slots for various combinations of DSL and VoIP line modules to provide ADSL2+, G.SHDSL and VoIP services to residential and business customers. It terminates the ATM traffic of DSL connections and POTS voice signals to make them IP packets and route them through IP networks. With the highly compact design (1U height), AC power input as well as simple installation, IES-1000 can be deployed at Telco and SMB environment to meet all kinds of market demands.

With G.SHDSL technology, the IES-1000 is applicable for lease line replacement. Using the TC-PAM modulation technique, IES-1000 is compatible with other existing transmission technologies, allowing service providers to deploy at locations where broadband services already exist.

IES-1000 supports the new-generation G.SHDSL.bis line module to provide transmission rate up to 4096kbps symmetrically in a single pair. It also comes with two 100Mbps Ethernet interfaces toward Ethernet aggregation network. One IES-1000 can accommodate two SAM1216-22 modules to support 32 SHDSL connections. In addition, the SAM1216-22 supports ITU G.991.2 m-pair bonding in a physical layer manner. The m-pair bonding can be 2 or 4 pairs and the aggregated payload rate is around 16Mbps.

Features:

Multi-service Access Node, AC power input with two slide-in slots for various DSL and VoIP line modules
12-port ADSL/ADSL2/ADSL2+ line module with a splitter built-in for MTU application
8-port G.SHDSL or 16-port G.SHDSL.bis line modules with M-pair bonding feature for business applications
24-port VoIP line module with SIP signaling protocol and MLT function support
Line module cascading with fast ethernet uplinks
802.1p QoS, priority queuing, 802.1q VLAN tagging and multicasting support
802.1x authentication, MAC/Packet filtering and ACL filtering support
Manageable with the Windows-based Element Management System (EMS)

Specifications:

802.1Q VLAN aware bridging IGMP snooping supports multicast traffic
QoS support with 802.1p
DHCP relay agent option 82 per VLAN
Port isolation/per VLAN isolution
256 static VLAN entries (full-range VLAN ID 1-4094)
4 K MAC address entries
Packet prioritizing per 802.1p (QoS) Static configuration - default priority setting
4 priority queues per PVC (up to 4 PVCs)
Multicast IPv4 multicast forwarding (through L2 MAC)
Static multicast membership configuration
IGMP v1, v2 snooping & IGMP proxy mode support
Shared VLAN multicast
256 multicast groups and each group can contain 18 members
IGMP filtering profile
IGMP count limiting
MVLAN
DSL port multicast bandwidth control
Management support CLI-based management from console/Ethernet port
SNMPV1,v2 and telnet through Inband Ethernet interface and NetAtlas Access, PC-based EMS management support
Web-based management through Inband Ethernet interface
Secured Host: configure remote host IP addresses for management
UNIX syslog
F/W upgrade, configuration backup & restore via FTP and Web
Text-based configuration file support
Power supply (AC/DC) AC Power: 100-240V AC, 50 - 60Hz
Operating Temperature 0deg. C- 50deg. C
Storage temperature -40deg. C- 70deg. C
Operating Humidity 10% - 90% (non-condensing)
Storage Humidity 10% - 95% (non-condensing)
Dimensions 440 x 320 x 46 mm / 17.32 x 12.59 x 1.81"
Weight 3.7 Kg / 8.15 lbs
