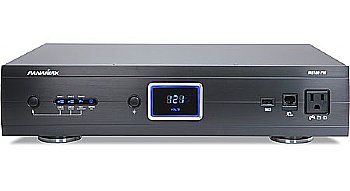

The Panamax MAX 5100-PM protects your audio/video system from harmful power spikes as well as the minor current fluctuations that can affect your system's performance. The 5100-PM can safeguard up to 11 components, and it includes a protected front-panel USB charger for your MP3 player, cell phone or other portable electronic device.
Clean power for high-performance audio/video gear
This power conditioner has ten AC outlets on its back panel, divided into three isolated banks to help prevent cross-interference between your components. Two of the outlets accommodate high-current components like an amplifier and powered subwoofer. These switched outlets operate on a delay to prevent "speaker thump" when powering your system on and off.
Coaxial RF and phone line protection
The MAX 5100-PM also has two sets of Ethernet jacks, including one jack on the front panel, so you can plug in your laptop and surf the web on a protected connection. A pair of protected jacks prevents spikes from coming in through your phone line, while three sets of coaxial terminals shield your satellite, cable TV and antenna connections. And the front-panel digital voltmeter's a nice touch — it lets you monitor the AC power coming into your system.
Details:
- 11 AC outlets with 3 isolated banks:
- one isolated bank of four switched outlets
- one isolated bank of four always-on outlets
- one isolated bank of two switched high-current outlets with delayed on/off
- one front-panel convenience outlet
- front-panel USB charger
- surge and over- and under-voltage protection
- filtration circuitry virtually eliminates line noise
- three sets of coaxial RF connections for cable/satellite/TV antenna
- two sets of RJ-45 LAN line inputs and outputs, including one front-panel connection
- RJ-11 phone line input and output
- 12-volt trigger input for delayed outlets
- front-panel digital voltmeter
- 1815-joule surge protection
- maximum current rating: 15 amps
- 17"W x 3-1/2"H x 12-3/4"D
- warranty: 3 years
- $5 million connected-equipment warranty (covers equipment that is damaged by an AC surge while connected to a properly installed Panamax surge protector if protector shows signs of surge damage or is operating outside of design specifications)
