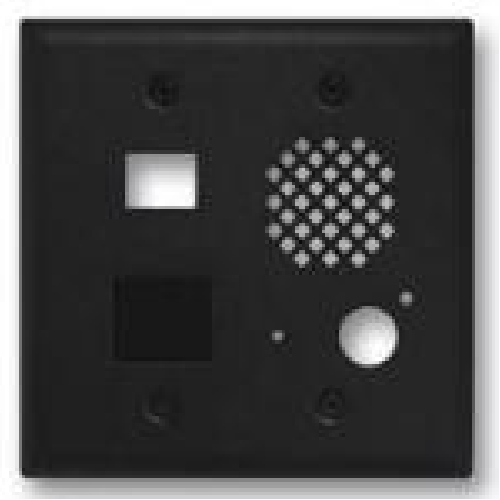

The PNL75 is a replacement faceplate with color matching screws and LED light pipe for the E-75 Series entry phones. The PNL75 is available in several different finishes. All unique colors are coated with an extremely durable U.V. resistant powder paint designed for rugged outdoor use.



Applications Use the PNL75 faceplates with Viking’s E-75 Series entry phones

Features Available Finishes: - Brushed Stainless Steel (similar to brushed nickel) - Oil Rubbed Bronze (satin dark brown powder paint with fine copper metallic) - Polished Brass with clear gloss powder paint to prevent tarnishing - Satin white powder paint (matches Anderson Windows white casing) - Fine texture satin black powder paint

Specifications Dimensions: Faceplate: 123.8mm x 125.4mm x 4.3mm (4.875” x 4.938” x 0.17”) Shipping Weight: 0.1 kg (0.2 lbs) Mounting: #6-32 x 1.25” flat head, 5/64” Hex drive, stainless steel, powder coated to match faceplate Faceplate Material: PNL75-SS/BN/WH/BK: 18 gauge, 0.048” thick 304 stainless steel PNL75-PB: 16 gauge 0.050” thick 260 polished brass
