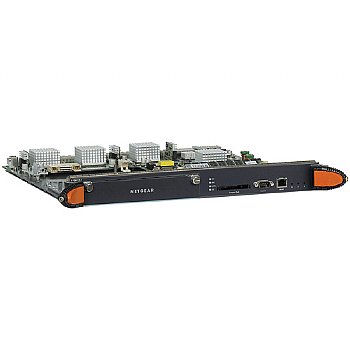

The Supervisor Module - Control Processor for ProSafe 8800 Series from Netgear is designed to give maximum switching fabric capacity and hitless failover in case the primary supervisory module does not work.
- Switching fabric (one Supervisory module): 424 Gbps
- Switching fabric (two Supervisory modules): 800 Gbps
- One slot for optional 8-port 1000Base-X SFP Card (XCM888F)
- One Management port (10/100 RJ45)
-
One Console port (serial RS-232)
Features:
- Compatible with Netgear 8800 Series
- IPv6, STP, RSTP, LLDP Support
- DoS Attack Prevention
-
Port Mirroring
| Type |
Supervisor Engine |
| Application |
Data networking
Optical network |
| Interface/Ports |
1 x RJ-45 10/100Base-TX Network Management
1 x Console RS-232 Management |
| Connectivity Media |
Twisted Pair 10/100Base-TX |
| Data Transfer Rate |
10 Mbps Ethernet
100 Mbps fast Ethernet |
| Expansion Slots |
1 x Expansion slot
1 x CompactFlash card slot |
| Form Factor |
Hot-swappable |
| Compatibility |
Netgear XCM8806 8800 series 6-slot chassis switch
Netgear XCM8810 8800 series 10-slot chassis switch |
| Dimensions (HxWxD) |
1.6 x 15.3 x 15.3" (4.06 x 38.86 x 38.86cm) |
| Weight |
6.45 lb (2.29 kg) |
