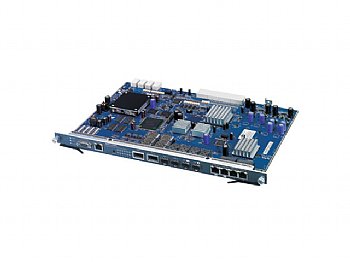

ZyXEL MSC1224G 10G Management Switching Card is compatible for IES-6000 Series High Capacity Multi-Service Access Node.
Specifications:
| Compatibility |
IES-6000 Series High Capacity Multi-Service Access Node |
| Connectivity Media |
Twisted Pair 10/100/1000Base-T |
| Data Transfer Rate |
10 Mbps Ethernet
100 Mbps Fast Ethernet
1 Gbps Gigabit Ethernet |
| Management |
IEEE 802.1q VLAN |
| Expansion Slots |
2 x XFP
2 x SFP (mini-GBIC) Uplink |
| Interfaces/Ports |
2 x 10/100/1000Base-T
1 x RJ-45 10/100Base-TX Network Management
2 x RJ-45 10/100/1000Base-T Network
1 x DB-9 Console RS-232 Management |
| Dimensions (W x D x H) |
15.38 x 9.45 x 0.54" /39.06 x 24 x 1.37 cm |
| Weight (Approximate) |
1.32 lb/0.59 kg |
|
|
