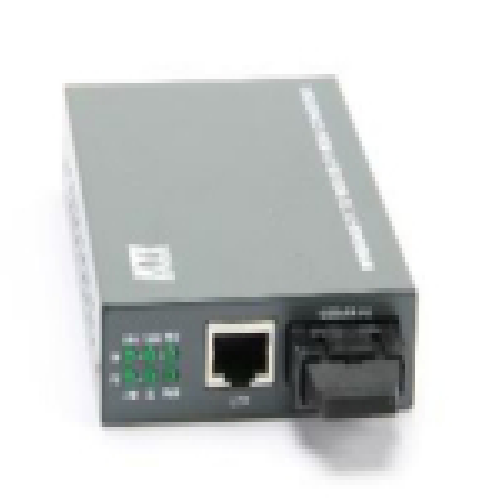

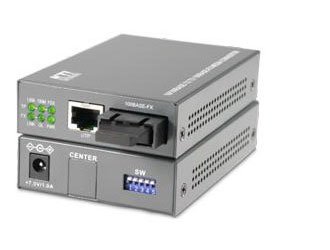

The 10/100BASE-TX to 100BASE-FX media converter series provides a media conversion allowing high-speed integration of fiber optic and twistedpair segments. With 10BASE-T and 100BASE-TX support, the converters provide seamless translation setween Ethernet and Fast Ethernet networks. A complete set of LEDs allows for quick status verification.

• RoHS compliant
• Connvert speed and media type
• Supports full wire speed conversion
• Supports 10/100M dual speed on TP connections
• Each TP port supports auto-negotiation and auto-MDI/MDI-X detection
• Link fault pass through function
• Transparent to 802.1Q VLAN tagged packets
• Far End Fault function on FX port
• Supports desktop, wall, and center chassis mounting
• Supports center chassis management
• Low power consumption
• Supports wide range of fiber options- ST, SC, MT-RJ, VF-45, single SC
  • Multi-mode fiber, Single mode duplex fiber, Single fiber
  • Short reach, medium reach, and long reach fiber connections
• Provides user accessible settings for TP port configuration, disabling link fault pass through function
• Provides optional user-inaccessible settings for specific system applications
