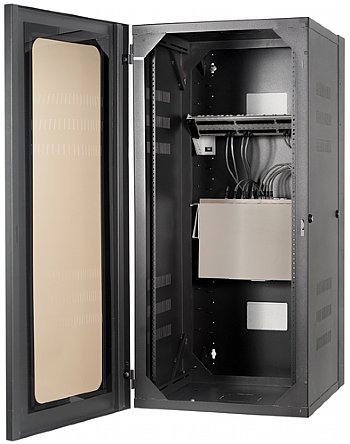

Hubbell’s unique QUADCAB® wall mount enclosures are designed with special high-strength hinges and a removable rear cabinet section to provide fast, easy wall mounting in the field. Also, the rear section of the enclosure can be custom configured for a wide variety of equipment mounting brackets and accessories. Patented eccentric knockouts virtually eliminate conduit bending, and additional knockouts are provided for metal and plastic raceway.QUADCAB® wall mount cabinets provide the installer with superior features for quick and easy installation and equipment accessibility. A mobile base accessory is also available for floor mount installations.
Features:
Specifications:
- 400 lb. load capacity
- Material:
- Rear section, center section: 14ga. Cold Rolled Steel.
- Top/bottom hinge cover panel: 11 ga. Cold Rolled Steel.
- Front door: 18 ga. Cold Rolled Steel.
- Hinged mounting plates (rear door): 11 ga. Cold Rolled Steel.
- Finish: powder coat black.
- 19” rack-style rails tapped #12-24 per EIA-310-D.<
- Grounding provisions per TIA-607.
- Acrylic window tinted smoke gray.
- 16” stud mounting.
- Front door and rear locks both keyed alike with key #CH751.
- Knockouts: 2 @ 2.5"-3"; 3 @ .75"-1"; 1 @ HBL4750 series raceway.
-
UL 1863 Listed.
Delivery:
- 1 rear section
- 1 front door
- 1 center section with 2 CH751 locks
- top/bottom cover plates
- 2 mounting angles, 19", tapped with #12-24 holes
- 2 hinge pins
- 2 security cotter pins
