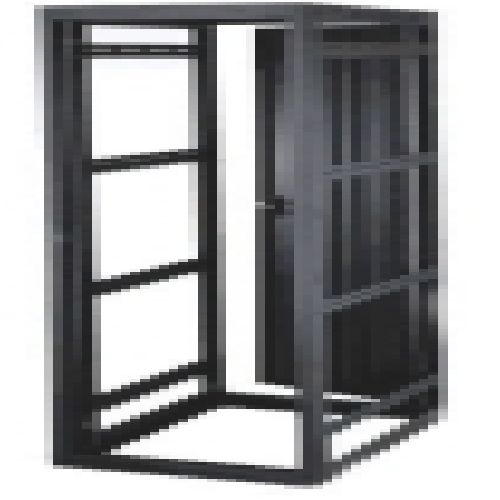

VMRK-54 VMRK-54 54 Space (94 1/2") 31" Deep Rack w/ Rear Door
- Racking Height: 94-1/2" (54 space)
- Overall Height: 100-5/8"
- 100-5/8" OD height, 54 useable spaces
- UL Listed in the US and Canada
- Seismic certified (UBC 1997 & CBC 1998 Zone 4; IBC 2000, IBC 2003, ASCE 7 - 02, NFPA 5000 Seismic Use Group III) for protecting 600 lbs. of essential equipment when used in conjunction with our MRK-Z4 brackets
- 31" OD depth
- 1/2", 3/4", 1" and 1-1/2" electrical knockouts found on removable split rear plates, top knockout plate additionally includes UHF/VHF antenna knockouts
- Broadcast standard 22" width
- Fully welded construction
- Substantial 2,500 lb. weight capacity
- 2 pairs threaded 10-32 "Z-RAIL" standard
- Laser-cut 1/8" thick internal steel braces for strength
- 14-gauge steel tops & bottoms, 16-gauge seamless steel sides
- Configurable open top accepts a number of top options
- Keylocked solid rear door standard
- Finished in durable textured black powder coat
- Optional horizontally split side panels available
- Grounding and bonding stud installed in base
