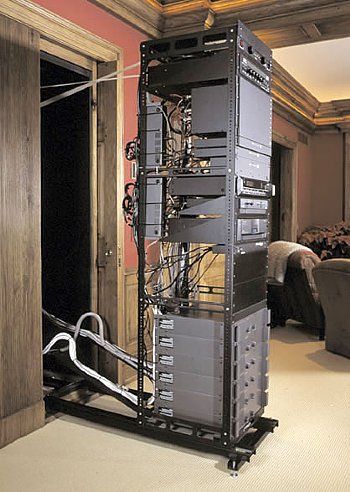

AXS System for Millwork and In-Wall. Gain Unrestricted Rear Access to Equipment & Cabling.
Features:
- Pull-out frame Rack saves time & reduces labor
- Frame heights range from 10 sp. (17.5") or 15 sp. (26.25") to 43 sp. (75.25")
- Available in 16", 20" or 26" depths
- Available in 2 extension lengths: 25" or 48"
- 650 lb. weight capacity with proper distribution
- Mechanically interlocking corner for exceptional strength
- Heavy-duty 13-gauge steel top & bottom
- 2 pairs fixed-position 11-gauge threaded 10-32 front & rear rackrail
- NEW! Cable Management Tray provides additional capacity for large cable bundles
- Finished in a durable black powder coat
- Full-depth front & rear mount AXS Rack shelf available
Specifications:
- Extension Length: 48"
- Frame Depth: 16"
- Millwork Opening Depth: 19"
