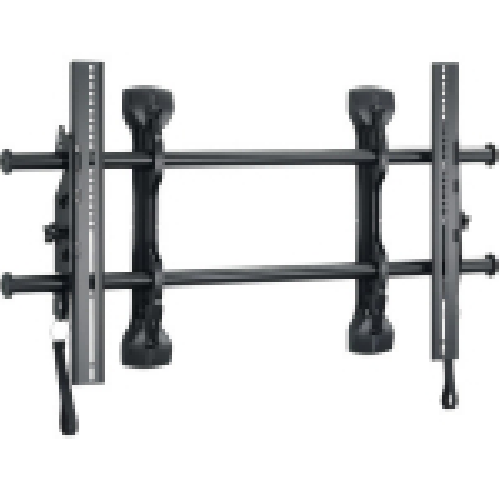

The installer-inspired tilt mount solves top flat panel installation problems, offering perfect TV positioning and post-installation fine tuning for large flat panel screens.
- Provides low-profile, fingertip tilt
-
Easy accessory attachment
- ControlZone Leveling for post-installation fine tuning of height and leveling
- Centris low-profile tilt uses the center of gravity to balance the screen while maintaining a low profile
- Centerless Shift provides up to 17.5" (445 mm) of post-installation lateral shift - 8.75" (222 mm) left/right of uprights - for limitless centering
- ClickConnect offers an audible click when the screen safely engages with the mount
- Built-in cable stand provides easy access under the screen
- A full line of accessories can be installed with the mount and the entire unit can be adjusted together
- Provides integrated security, just add a padlock
- Depth from Wall: 1.99" (51 mm)
- Tilt: 0 - 12°
- Max Lateral Shift: 17.5" (445 mm)
- Height Adjustment: +/-0.5"
- Mounts on Studs: 16", 20", 24"
- Dimensions (HxWxD): 16.5" x 34.44" x 1.99" (419 x 875 x 51 mm)
- Max Mounting Pattern: height - 19.9" (506 mm), width - 35.25" (895 mm)
- Weight Capacity: 200 lbs (90.7 kg)
- Color: Black
