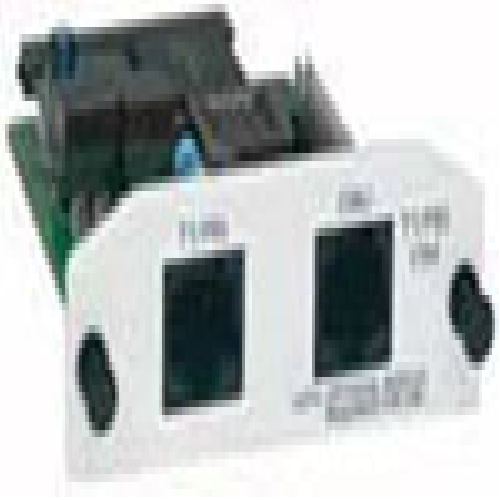

Provides one RBS T1 or PRI (5E, DMS100, or National) interface for termination of TDM voice trunks
Supports integrated (voice/data) T1/PRI circuit termination
Supports same data applications as the NetVanta T1 NIM
- Supported Standards: AT&T TR 62411, AT&T TR 54016,Bellcore TR 194, ANSI T1.403
- Line Rate: 1.544 Mbps ?75 bps
- Line Code: AMI or B8ZS
- Framing: D4 (SF) or ESF
- FT1 Line Rate: DS0 channelized (multiples of 64 kbps)
- Input Signal: 0 to -36 dB (DS1)
- Line Build-Out: 0, -7.5, -15, -22.5 dB (long), 0 to 655 ft (short)
- Connector: RJ-48C
- DS0 Assignment: Programmable
