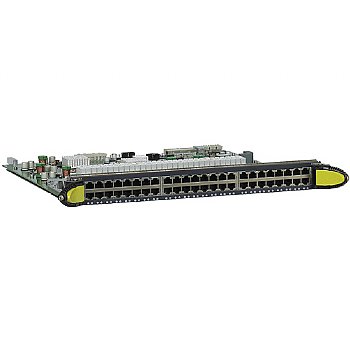

The 8800 Series XCM8848T 48-port Gigabit Copper I/O Module from Netgear provides high-density copper Gigabit connectivity for end-users. It is an I/O Module for the 8800 Series. XCM8848T 8800 Series 48-port Gigabit copper I/O Module supports hot-swapping.
Features:
Series 48-port 10/100/1000Base-T Module
Line-rate Local Switching
Hot-swappable
Optional 802.3af PoE Daughter Card
| 10/100/1000BASE-T Ports |
48 RJ45 |
| PoE 802.3af |
XCM88P Daughter Card |
| Backplane Capacity |
2 Supervisory Modules - 48 Gbps
1 Supervisory Module - 24 Gbps |
| Policy Based Routing |
Yes |
| sFlow Sampling |
Hardware |
| ACL Hardware Resources |
4K ACLs per 24-port block |
| Load Sharing Groups |
128 |
| Layer 2 MAC FDB |
32K |
| IPv4 Longest Prefix Match Entries |
12K |
| IPv4 Host Table |
6K |
| Extended IPv4 Host Cache |
Yes |
| IP Multicast Sources, Groups |
2K |
| IPv6 Forwarding |
Hardware |
| Gigabit Copper I/O Module |
48 auto-sensing RJ45 10/100/1000 ports Optional 802.3af PoE daughter card (XCM88P) |
| Power |
110W (Heat Dissipation: 376 BTU) |
| Dimensions (HxWxD) |
1.63 x 15.26 x 15.25" (4.1 x 38.8 x 38.7 cm) |
| Weight |
7.75 lb (3.52 kg) |
