SKU: IES1248-51
Brand: Zyxel
ZyXEL IES1248-51 Hardened ADSL2+ Mini IP DSLAM, DC Power Input
List Price: $4,099.99
Price: $3,461.95
You Save: $638.04 (16%)

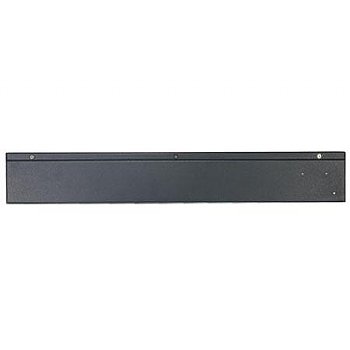

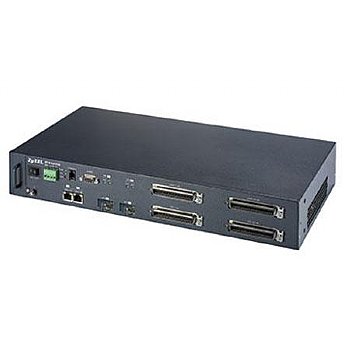

(Click to see larger image and other views)
Product Details
The IES-1248-51 (DC Power Input) is an IP-based DSLAM that terminates all the ATM circuits and converts traffic directly to deliver the most popular broadband IP services. It also provides a distinct advantage over typical ATM-based DSL access system due to the fact that IP is the natural approach for data transmission.

With the highly compact and temperature-hardened design, simple installation and easy adaptation to local POTS/ISDN splitter requirements, the IES-1248-51 can be deployed in indoor and outdoor enclosures. With this standalone ADSL2+ IP DSLAM, service providers can offer residential and business users access to high-bandwidth services on demand; such as streaming video, online gaming, multimedia applications and multiple video channels on a single network connection.

The IES-1248-51 also offers medium/small businesses and home offices IP connectivity, VPNs, VLANs, high-quality video conferencing, long-reach Ethernet and legacy service interconnection, as well as asymmetric connectivity as fast as 24Mbps. The IES- 1248-51 DSL solution for POTS/ISDN is a sophisticated ADSL2+ device wielding full compliance to existing standards, the latest DSL technology, compactness, low power consumption, integration with existing platforms and network manageability.

The combination of a superior line code, modern signal processing techniques and state-of-the-art ASIC design add up to a compact, energy-saving ADSL2+ modem with excellent performance, transparent backward ADSL/ADSL2 compatibility, robust interference resistance and flexible configurability.
The fastest speed with the most advanced and flexible DSL transport available, adjustable speeds for multiple service offerings down/up stream up to 24/1.2 Mbps
Application flexibility, with asymmetric data transport over a single copper pair (software configurable)
Compliant with ITU, ANSI and ETSI standards
POTS/ISDN in overlay mode
Deployment from CO, cabinet or basement, multi-tenant units/multi-dwelling units
ADSL2/ADSL2+ Interface 1 Support G.992.3 and G. 992.5 ATM Transmission Convergence (ATM-TC) function
Support G.992.3 and G.992.5 Spectral Mask
Support EOC and Overhead Channel Access defined in ITU-T Rec. G.992.3 and ITU-T Rec. G.997.1
Support the latency path function specified in ITU-T Rec. G.992.3 and G.992
ADSL2/ADSL2+ Interface 2 Support loop diagnostic function specified in ITU-T Rec. G.992.3 and G.992.5
Support the power management capability specified in ITU-T Rec. G.992.3 and G.992.5
Support the capability of the Seamless Rate Adaptation (SRA) on-line configuration specified in ITU-T Rec. G.992.3 and G.992.5
Network Interface IEEE 802.3u 100BASE-Tx
IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-Lx/1000BASE-Sx
ATM Functionality 1 Support Point-to-Point Virtual Circuit Connection (VCC) in the Network
Provide the Peak Cell Rate (PCR) configurable parameter for UBR services specified in ATM Forum Traffic Management 4.0
Provide the Peak Cell Rate configurable parameter for CBR services specified in ATM Forum Traffic Management 4.0
Provide the Peak Cell Rate (PCR) and Sustainable Cell Rate (SCR) configurable parameters for rt-VBR and nrt-VBR services specified in ATM Forum Traffic Management 4.0
ATM Functionality 2 The over-subscription of bandwidth is permitted, i.e., total DSL bandwidth can be larger than bandwidth of DSLAM network interface for UBR service
Support the downstream traffic shaping function for each ATM PVC connection
Support the Fault Management (FM) functions of the ATM layer F5 OAM cells for End-to-End Loopback defined in ITU-T Rec. I.610
Support 64k PVC
IP Functionality Support ICMP (Internet Control Message Protocol) function and respond the ICMP request message sent from NMS or other system
Subscriber Management Support the Ethernet MAC filtering function
Support 64k MAC addresses
Support the DHCP relay agent option 82 function
Support 802.1x
Support port isolation function
Support RFC2684 bridged mode payload encapsulation method
Support the IPSec/L2TP/PPTP VPN pass-through function
Support RFC2516 PPPoE packet forwarding function
VLAN & VLAN Bridge Functions Provide 1024 configurable VLANs
The VLAN tagging complies with IEEE 802.1Q
Support VLAN bridge function of mapping of multiple PVCs to one VLAN ID
Support the IEEE 802.1Q VLAN tagging
Support GVRP function
Reliability Support 802.1w RSTP
QoS Support configurable IEEE 802.1p priority queue function and support 4 levels
Support configurable mapping function between ATM PVC and 802.1p priority queue
IP network interface Support RFC2684 bridged mode multicast service
Support Internet Group Management Protocol (IGMP) version 2 specified in RFC2236
Support IGMP snooping function
Support 256 multicast groups
Support 144 copies for each multicast group
Management Local management through a craft terminal
Support the In-band IP interface for managing the Network
Support SNMP (Simple Network Management Protocol) v1.0 & v2c (RFC1157)
The management activities can be performed by SNMP operations
Support SNMP MIB(s)
Support standard SNMP traps so that these traps can be reported to other NMSs
Centralized Management Software - EMS supporting

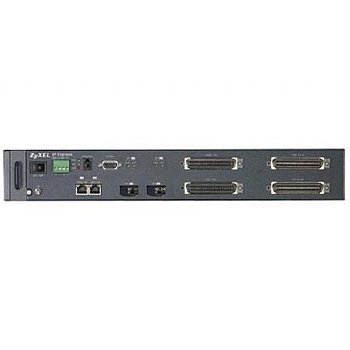

Hardware Configuration Two TELCO-50 connectors for 48-port ADSL/ADSL2/ADSL2+
Two TELCO-50 connectors for 48-port splitter card
One mini RJ11 console port for local management
Two 100Base-Tx/1000Base-T or two mini GBIC for uplink/subtending
One DB9 for 3 in and 1 out alarm contact
Hot-swappable fan module
DC Input connector
Splitter Built-in
Mount Type 19" and 23" Rack-mountable
Power Requirements Voltage: -48 VDC (-36 - -72 VDC)
Power: max. 90 Watts
Operating Temperature -40deg. C - 65deg. C
Storage Temperature -40deg. C - 85deg. C
Operating Humidity 10% - 95% (noncondensing)
Storage Humidity 5% - 95% (non-condensing)
Dimensions 439.8 x 251 x 66 mm / 17.31 x 9.88 x 2.59"
Weight 7.2 Kg / 15.87 lbs
