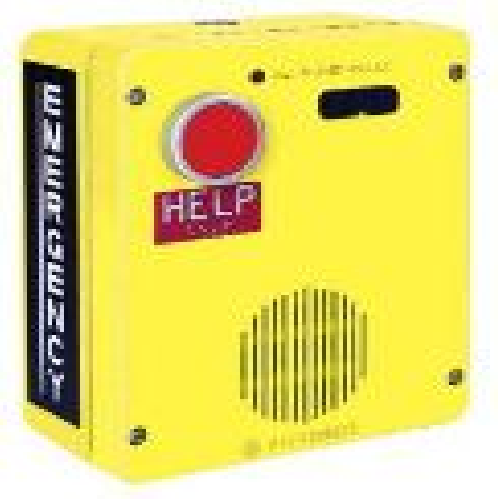

RED ALERT Emergency Telephones have been designed for maximum environmental sustainability, high
audio quality, and unparalleled monitoring capability. In addition to providing hands-free, two-way communications, a RED ALERT telephone can tell you its location, report call activity, activate up to two peripheral devices, and let you know when it is experiencing problems. When used with our TMA (Telephone Management Application) software, RED ALERT telephones will lower system test and maintenance time (and time is money!) while greatly decreasing liability issues associated with undetected, faulty equipment. No other telephone provides greater features, value, and reliability. Housed in a weatherproof, safety yellow, glass-reinforced polyester or cast aluminum enclosure, designed for surface-mounting;includes EMERGENCY push button. Housed in a weatherproof, safety yellow cast aluminum enclosure, designed for surface-mounting; includes 12-button Braille keypad, EMERGENCY push button, and CALL (off-hook) button.
Standard or SMART (Self-Monitoring And Reporting Technology) Operation
Communicates with TMA (Telephone Management Application) Software for Monitoring and
Reporting: Microprocessor Health, Stuck Buttons, Failed Speaker or Microphone, Line Interrupt, Call Activity, and Line Integrity.
ADA Compliant with Braille “Help” Label, and visual “Call Received When Lit” LED.
Large “Palm” Emergency Pushbutton
Enhanced Audio and Speaker Circuits • Microphone Shroud Prevents Water Ingress
Vertical Speaker Grill Design Promotes Water Egress
Voice Annunciation Option (with low battery monitoring), Local or Remote Programming
Extreme Cold Weather Option to -40°C (120 V ac required), Providing Non-Moving Pushbuttons
and Power Supply
Two Control Outputs (Gate, Door, Alarm, etc.)
- NEMA 3R Weatherproof Rating
CSA Certified, FCC Registered and IC Certified
Safety Corner Design (Flush-mount)
- Available in Analog or VoIP Packages
Available in Retrofit Packages for Code Blue, Ramtel, and Talk-A-Phone Replacements urface-mounting;includes EMERGENCY push button.
Voice Annunciation Option:
The Voice Annunciation option provides the called party (security, police, etc.) the ability to activate a pre-recorded message within the connected RED ALERT telephone. Each RED ALERT telephone can be programmed locally or remotely for a voice message that will announce the telephone location, provide instructions, or whatever the message requirements are. A simple DTMF command allows the called party
to activate the message at any time during the call.
Extreme Cold Weather Option:
RED ALERT telephones are designed to operate to -20°C. For more extreme low temperatures, an Extreme Cold Weather option is available. This option provides a plug-in power supply (120 V ac required)
to activate an internal “heater” circuit and piezo (non-moving) EMERGENCY and CALL (if applicable) pushbuttons.This design prevents melting snow or ice from freezing the pushbutton activation and allows
operation to -40°C.
