Brand: Bogen
MODULAR LECTURN ARRAY MLA40 Microphones represent an innovative approach to podium and table-top lectern design
List Price: $1,983.96
Price: $922.79
You Save: $1,061.17 (53%)

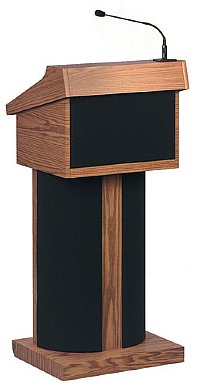

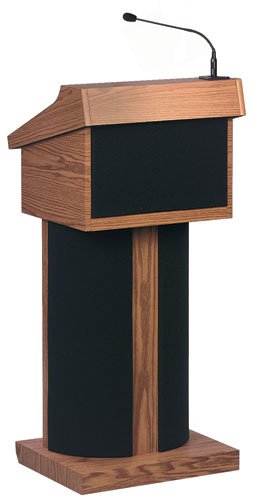

(Click to see larger image and other views)
Product Details
Bogen Communications MLA40 Modular Lectern Array

Bogen’s MLA lecterns represent an innovative approach to podium and table-top lectern design. The multi-speaker array concept offers wider horizontal dispersion than traditional podium style lecterns. The modular design ensures flexibility. Performance advantages make it well suited for demanding applications in schools, churches, hotel and rental situations. The MLA40 is a free-standing lectern that can also be configured for tabletop use.
Product Specifications
Product Name
Bogen Communications MLA40 Lectern Array
Rated Power Output 40 Watts RMS
Frequency Response 20 Hz to 20 kHz ±1 dB at -2 dB < rated power
THD Less than 0.5%, 20 Hz to 20 kHz at -2 dB < rated power
Hum and Noise (20 Hz to 20 kHz)a MIC: -55 dB below rated output, Aux: -70 dB below rated output
Input Connections MIC 1/Lectern Mic: 3-pin, AUX: RCA jack (mono
Input Sensitivity MIC: Lo-Z (250 Ohm), balanced, 800 mV, AUX: Hi-Z (10 KOhm), unbalanced > 85 mV
Microphone High-quality cardioid condenser microphone
Tone Control Action Treble ±11dB at 10 kHz, Bass ±11dB at 100 Hz
ALC Switch in/out
Speech Filter -15 dB at 80 Hz
Volume Controls MIC 1, Lectern Mic, Aux
Tone Controls Bass and Treble
Switches Phantom Power, ALC, Speech Filter, Power
External Speaker Impedance 16 Ohm (minimum
External Speaker Impedance 16 Ohm (minimum
Tape Output 500 mV
Output Connections Tape Out — RCA jack, Speaker Out (2) — 1/4 inches mono phone jack
Auxiliary AC Power 300 Watts maximum, unswitched
Dimensions 21.6 x 48.0 x 19.5 inches
Factory Sealed/Open Box Warranty: 1 Year
