GLD-DSX-5000

Our Products: Tools & Testers
SKU: DSX2-5000
Brand: Fluke Networks

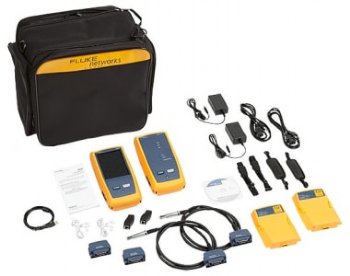

Fluke Electronics DSX2-5000
UPC: 754082103400
List Price: $13,263.00
Price: $13,175.00
Add to Wishlist Add to Wishlist
GLD-DSX-5000
GLD-DSX-5000
Previous Item Previous Item   Next Item Next Item
Product Details

(4954937) 1GHZ DSX Cableanalyzer V2  W/WIFI


  • Fluke Networks DSX2-5000 Versiv 2 CableAnalyzer Copper Certifier with Integrated Wi-Fi
  • Versiv modular design supports copper certification, fiber optic loss, OTDR testing and fiber end-face inspection
  • Unmatched speed for Cat 6A, 8, Class FA, I/II and all current standards
  • ProjX system manages job requirements and progress from set-up to systems acceptance, making sure all tests are completed correctly
  • Taptive user interface simplifies set-up, and eliminates errors
  • Analyze test results and create professional test reports using LinkWare management software
  • Graphically displays the source of failures including crosstalk, return loss and shield faults for faster troubleshooting
  • Intertek Verified to TIA Level 2G – the most stringent accuracy requirement
  • Complete testing for your Industrial Ethernet copper cabling
  • Built in Alien Crosstalk testing capability




Manufacturer Specs

DSX CableAnalyzer Series Specifications
Cable Types
Shielded and unshielded pair LAN cabling TIA Cat 3, 4, 5, 5e, 6, 6A, 100 Ω ISO/IEC Class C, D, E, EA, F, FA and I/II: 100 Ω and 120 Ω
Standard Link Interface Adapters
Permanent link adapters Plug type: shielded RJ45
Optional Plug type: Tera
Channel Adapters Jack type: shielded RJ45
Optional Jack type: Tera, GG45
Test Standards
TIA Cat 3, 4, 5, 5e, 6, 6A, 8 per TIA 568 Series
ISO/IEC Class C, D, E, EA, F, FA, I/II certification per ISO/IEC 11801 Series
Maximum frequency DSX-5000 1000 MHz
General Specifications
Autotest Time DSX-5000: Full 2-way Autotest of Cat 5e or 6/Class D or E: 9 seconds Full 2-way Autotest of Cat 6A/Class EA: 10 seconds
Support test parameters (The selected test standard determines the test parameters and the frequency range of the tests) Wire Map, Length, Propagation Delay, Delay Skew, DC Loop Resistance, Insertion Loss (Attenuation), Return Loss (RL), NEXT, Attenuation-tocrosstalk Ratio (ACR-N), ACR-F (ELFEXT), Power Sum ACR-F (ELFEXT), Power Sum NEXT, Power Sum ACR-N, Power Sum Alien Near End Xtalk (PS ANEXT), Power Sum Alien Attenuation Xtalk Ratio Far End (PS AACR-F)
Input protection Protected against continuous telco voltages and 100 mA over-current. Occasional ISDN over-voltages will not cause damage
Display 5.7 in LCD display with a projected capacitance touchscreen
Case High impact plastic with show absorbing overmold
Dimensions Main Versiv unit with DSX module and battery installed: 2.625 in x 5.25 in x 11.0 in (6.67 cm x 13.33 cm x 27.94 cm)
Weight Main Versiv unit with DSX module and battery installed: 3 lbs, 5oz (1.28 kg)
Main unit and remote Lithium ion battery pack, 7.2 V
Typical battery life 8 hours
Charge time* Tester off: 4 hours to charge from 10 % capacity to 90 % capacity
Languages supported English, French, German, Italian, Japanese, Portuguese, Spanish, Chinese, Korean, Russian, Trad Chinese, Czech, Polish, Swedish, Hungarian
Calibration Service center calibration period is 1 year
Integrated Wi-Fi

Meets IEEE 802.11 a/b/g/n; dual band (2.4 GHz and 5 GHz)

Made in USA
